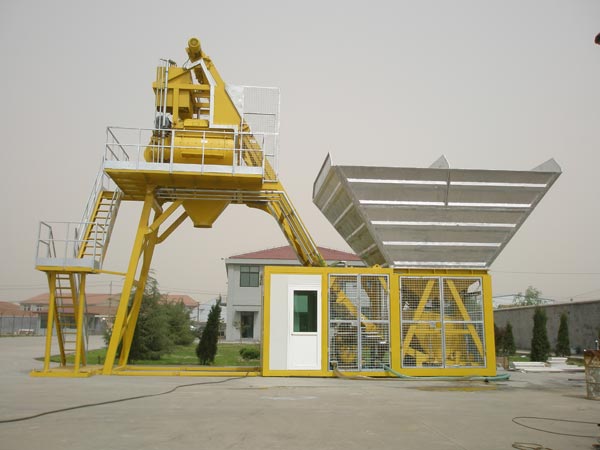

35m3/h Mobile Concrete Plant

35m3/h Mobile concrete plant also called YHZS35 small concrete batching plant made by haomei machinery has good quality and low cost.
YHZS35 mobile concrete plant is the new type of moveable concrete batching plant that designed and produced by our our company which have adopted advanced technology and scientific achievements from domestic and abroad, combine our abundant experience of produce batching plant. It is one of the best mobile concrete batching plant in China. It’s structure is compact and reasonable. Most of the functions like batching system, electric weighing system, aggregate lifting system, mixing system are integrated into a trailer unit. So it is convenient to move and easy to install. It is your best choice for mobile operations in various constructions such as highway, railway, architecture, municipal engineering, bridge, port and hydropower station.

35m3/h Mobile Concrete Plant

Models and Specifications:

 Model

YHZS35

Mixer

JS750

Productivity

35m3/h

Aggregate hopper

4*5m3

Grain size

≤80mm

Discharge height

2.8m

Total weight

20T

Total power

55kw

Weighing accuracy

Aggregate

2000kg±2%

Powder

300kg±1%

Water

250kg±1%

Additive

20kg±1%

Dimension

14.1mx2.2mx3.9m(Moving)13.2mx3.3mx6.7m(Working)

Speed

15km/h

Voltage specification
(as request)

380v/50Hz (as request)
